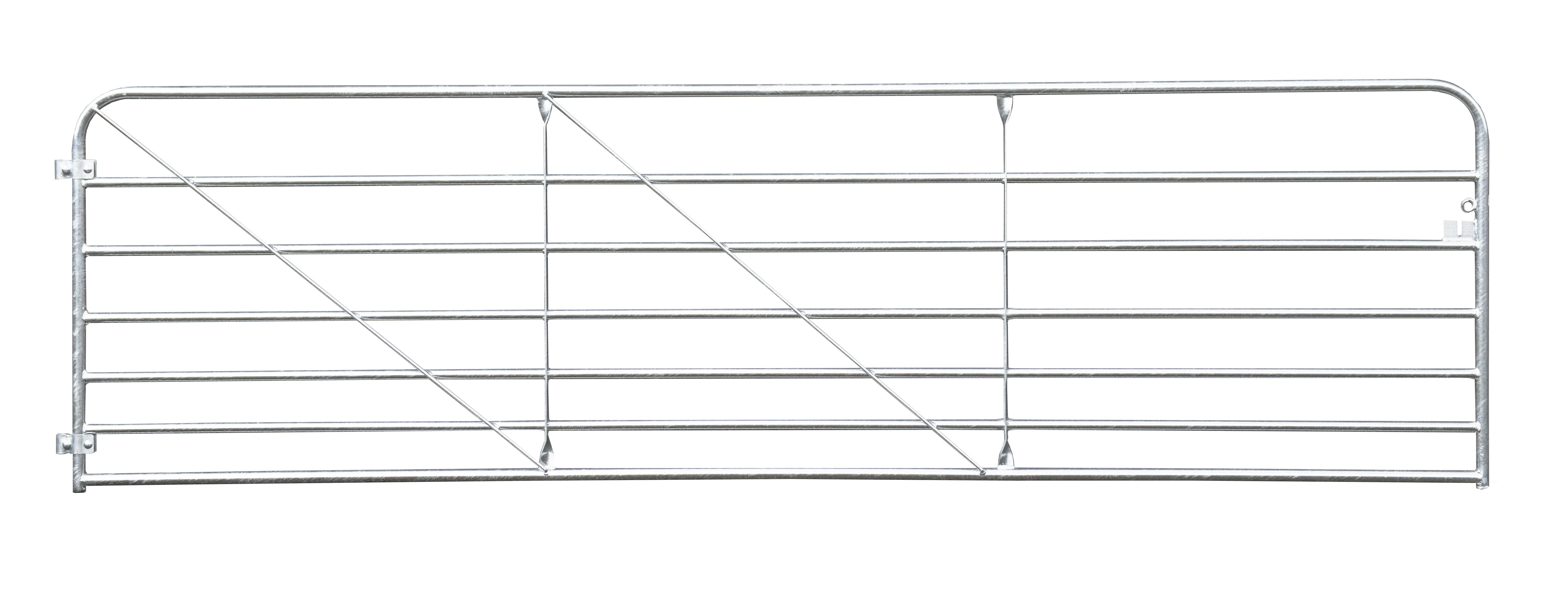

Heavy Duty Gate

This is Greyson’s heaviest and strongest gate. It is ideal for farming situations where maximum strength is required. Often used around yards and raceways where a higher level of stock pressure is likely.

Features

  • 25mm nominal bore pipe frame
  • 5 x 20mm nominal bore pipe horizontal bars
  • 40mm flat twisted support uprights
  • 2 x 9.5mm diagonal support bars
  • 2 x 20mm heavy duty adjustable hinge clamps top and bottom
  • Split link latch attachment
  • Fully hot tip galvanised inside and out

* Made to Order



Heavy Duty Gate
Product ID Length Height
Y4408 2.44 (metres) / 8' (feet) 1.05 (metres) / 3' 5" (feet)
Y4410 3.05 (metres) / 10' (feet) 1.04 (metres) / 3' 5" (feet)
Y4411 3.35 (metres) / 11' (feet) 1.05 (metres) / 3' 5" (feet)
Y4412 3.66 (metres) / 12' (feet) 1.04 (metres) / 3' 5" (feet)
Y4413 3.96 (metres) / 13' (feet) 1.05 (metres) / 3' 5" (feet)
Y4414 4.27 (metres) / 14' (feet) 1.04 (metres) / 3' 5" (feet)
* Y4415 4.57 (metres) / 15' (feet) 1.05 (metres) / 3' 5" (feet)
* Y4416 4.88 (metres) / 16' (feet) 1.05 (metres) / 3' 5" (feet)
